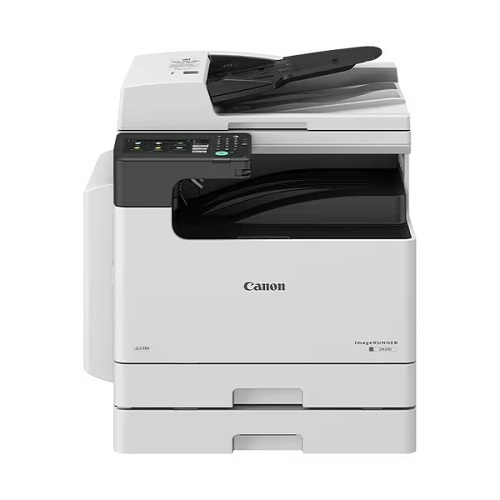

Canon imageRUNNER 2930i + Plain Pedestal Type S3 MFP (LWN)

Machine Type
A3 Monochrome Laser Multifunctional

Core Functions
Print, Copy, Scan, Send and Optional Fax

Processor Speed
1.6GHz Dual Core Processor

Control Panel
Standard: 7 inch TFT LCD WVGA Colour Touch panel

Memory
Standard: 2.0GB RAM

Storage
Standard: 64GB eMMC
Optional: 256GB SSD

Interface Connection
NETWORK Standard:
1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), Wi-Fi Direct Connection
OTHERS Standard:
USB 2.0 (Host) x2, USB 2.0 (Device) x1

Paper Input (Standard)
Paper Input (Standard)

Paper Supply Capacity (A4, 80 gsm)
Standard: 1,200 sheets
Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)

Paper Output Capacity (A4, 80 gsm)
Standard: 250 sheets
Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)

Finishing Capabilities
Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand1

Supported Media Types
Main Body Cassette (Upper/Lower):
Thin, Plain, Recycled, Color, Heavy, Bond, Pre-Punched, Letterhead, PostCard

Multi-purpose Tray:
Thin, Plain, Recycled, Color, Heavy, Bond, Pre-Punched, Letterhead, PostCard, Labels, Coated, Tracing

Supported Media Sizes
Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*, Monarch*, DL*

Custom Size: 105 x 148 mm to 304.8 x 457.2 mm

*Requires Envelope Attachment A (std)

Supported Media Weights
Main Body Cassette (Upper/Lower): 52 to 256 gsm

Multi-purpose tray: 52 to 300 gsm

Duplex: 52 to 220 gsm

Print Specifications
Print Speed
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

Print Resolution (dpi)
Up to 1200 x 1200

Page Description Languages
Standard: UFRII, PCL6,
Optional: Adobe® PostScript®3TM

Double-Sided Printing
Yes

Direct Print
PDF, EPS, TIFF/JPEG, XPS

Mobile / Cloud Printing
AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print by Microsoft

Fonts
PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T1 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts2

Print Features
Secure Print, Secure Watermark, Header/Footer, Page Layout, Duplex Printing, Mixed Paper Sizes/ Orientations, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

Operating Systems
UFRII: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.13 or later)
PCL: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022
PS: Windows® 10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X (10.13 or later)
PPD: Windows® 10/11, Mac OS X (10.13 or later)

Copy Specifications
Copy Speed
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

First-Copy-Out Time
7 seconds

Copy Resolution (dpi)
600 x 600

Multiple Copies
up to 999 copies

Copy Density
Automatic or Manual (9 Levels)

Magnification
25% - 400% (1% Increments)

Preset Reductions
25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%

Preset Enlargements
25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%

Basic Copy Features
Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Sort, Job Build, N on 1, Different Size Originals, Sharpness, Erase Frame, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample

Scan Specifications
Type
Color Scanner

Pull Scan Specifications
Colour Network ScanGear2. For both TWAIN and WIA Supported OS:
Windows® 10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server202

Scan Resolution (dpi)
Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600

Document Feeder Paper Capacity (80 gsm)
up to 50 sheets

Acceptable Originals/Weights
Platen: Sheet, Book, 3-Dimensional Objects
Document Feeder sheet media weight:
1-sided scanning: 38 to 128 gsm (BW/CL)
2-sided scanning: 52 to 128 gsm (BW/CL)

Supported Media Sizes
Platen: max. scanning size: 297.0 x 431.8 mm
DADF: A3, A4, A4R, A5, A5R, B4, B5, B5R,
Custom size: 148.0 x 128.0 mm to 297.0 x 431.8 mm

Scan Method
Push Scan, Pull Scan, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud-based services (uniFLOW Online)

Scan Speed
1-sided Scanning: 35/25 (300 x 300 dpi, send), 25/- (600 x 600 dpi, copy) 2-sided Scanning: 12/8 (300 x 300 dpi, send), 8/- (600 x 600 dpi, copy)

Double-Sided Scanning
Yes

Send Specifications
Optional / Standard
Standard

Destination
Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV,
Optional: Super G3 FAX

Address Book / Speed Dials
LDAP (2,000)/ Local (1,600) /Speed dial (200)

Send Resolution (dpi)
Push: up to 600 x 600
Pull: up to 600 x 600

Communication Protocol
FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
Email/iFax: SMTP(send), POP3(receive)

File Format
Standard: TIFF (MMR), JPEG {foot}, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature, Office Open XML (PowerPoint, Word)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)

Universal Send Features
Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation

Fax Specifications
Optional / Standard
Optional

Maximum Number of Connection Lines
1

Modem Speed
Super G3: 33.6 kbps
G3： 14.4 kbps

Compression Method
MH, MR, MMR, JBIG

Resolution (dpi)
200x100dpi (Standard), 200x200dpi (Fine), 200x400 dpi (Super Fine), 400x400 dpi (Ultra Fine)

Sending/Receiving Size
Sending: A3, A4, A4R, A5*1, A5R*1, B4, B5*2, B5R*1
Receiving: A3, A4, A4R, A5R, B4, B5, B5R

*1 Sent as A4.
*2 Sent as B4 short.

FAX Memory
Up to 30,000 pages (2,000 jobs)

Speed Dials
Max. 200

Group Dials/Destinations
Max. 199 dials

Sequential Broadcast
Max. 256 addresses

Memory Backup
Yes

Fax Features
Sender's Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Finished Stamp, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox

Store Specifications
Memory Media
Standard: USB Memory

Security Specifications
Authentication & Access Control
User Authentication(Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication(Depertment ID and PIN Login, Function Level Login), uniFLOW Online (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Depertment ID and PIN Login, Function Level Login), Access Management System(Access Control)

Network Security
TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality(IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support(Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling(Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception

Document Security
Print Security(Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print1), Receive Data Security(Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS2), Send Data Security(Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)

Device Security
Standard Storage Initialize, Job Log Conceal Function, Checking MFP Software Integrity, (Verify System at Startup, Automatic Recovery, Runtime Intrusion Detection)

Device Management & Auditing
Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting, Remote Management Two-factor Authentication

Environmental Specifications
Operating Environment
Temperature: 10 to 30 °C (50 to 86 °F)
Humidity: 20 to 80 % RH (Relative Humidity)

Power Source
EUR: 220-240V 50/60Hz 10A

Power Consumption
Maximum: Approx. 1,500W
Copying (with DADF continuous scan): Approx. 666W (220-240V) *1
Standby: Approx. 28.1W (220-240V) *1
Sleep Mode: Approx. Wired LAN: 0.8W*2

*1 Reference value: measured one unit
*2 0.8W is not available in all circumstances due to certain settings.

Typical Electricity Consumption (TEC): 0.33 kWh*

*As per ENERGY STAR Version 3.0

For detailed information relating to Lot26 regulation, please go to: https://www.canon-europe.com/for_work/lot26/

Noise Levels
Sound Power Level (LWA,m)
Active (BW)(1-sided): 6.4B, Kv 0.3B

Sound Pressure (LpAm)
Bystander's position: TBD
Active(BW/CL)(1-sided): TBD

*Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)

*Reference value: measured only one unit with ISO7779, described with ISO9296 (2017)

Standards
Blue Angel

Software & Printer Management
Tracking & Reporting
uniFLOW Online

Remote Management Tools
iW Enterprise Management Console
eMaintenance
Content Delivery System

Scanning Software
Network ScanGear

Optimisation Tools
Canon Driver Configuration Tool

Consumables
Toner Cartridge/s
Toner C-EXV 67 Black

Toner Estimated Yield
33,000 pages (A4)
(Estimated @ 6% coverage)

Paper Supply Options
Cassette Feeding Unit
Cassette Feeding Unit-AW1:
Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead
Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R,
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 635 x 248 mm
Weight: Approx. 16.0 kg

Output Options
Copy Tray
Check for impacted products.

Inner 2way Tray-M1:

Tray Capacity (with 80 gsm paper):
Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
　　　　　　 SRA3, A3, A4R, B4: up to 100 sheets
Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 428 x 405 x 88 mm
Weight: Approx. 0.7 kg

Copy Tray-T2:

Capacity (80gsm paper):
A4, A5R, B5, B5R: 100 sheets
A3, A4R, B4: 65 sheets
Dimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg

Hole Puncher
1 product to be migrated.

Inner 2/4 Hole Puncher
Inner 2/4 Hole Puncher-D1:

(Requires Inner Finisher-L1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R,
Four holes: A3, A4

Inner 4 Hole Puncher-D1:

(Requires Inner Finisher-L1)
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
A3, A4, A4R, A5, B4, B5, B5R

Hardware Accessories
Card Readers
IC Card Reader Attachment-B4
Attachment kit for Reader-A2

Security Options
Data Security
Picture Login-A1

System & Controller Options
Print Accessories
PCL International Font Set-A
PS Printer Kit-BT1

Send Options
Universal Send Trace & Smooth PDF Kit-A1
Universal Send Digital User Signature Kit-C1

Barcode Printing
Barcode Printing Kit-D1

System Accessories
Copy Control Interface Kit-D1

Fax Accessories
Super G3 FAX BD-BN1 EU
Remote Fax Kit-A1

Other Options
Staple Cartridge
Staple-P1

Accessibility Accessories
ADF Access Handle-A1
