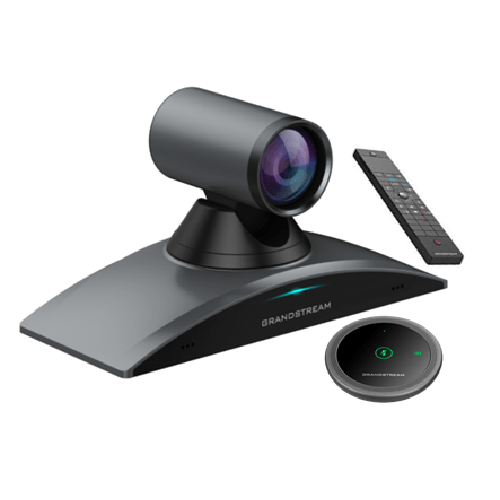

Grandstream GVC3220 4K Ultra HD Video Conferencing System
NGN2,241,224.10
Availability:
In stock
Out of stock
SKU
deluxe----1656599853
Brand
Grandstream
Category
Phones
Desktops
Add to Wishlist
Compare
Weight
10.2 kg

Product Description

The SIP-based GVC3220 provides an enterprise-grade conferencing and collaboration solution that offers extraordinary quality with 4k Ultra HD video support and the flexibility to support any SIP or H.323 video conferencing platform. It is based on Android 9.0 and offers powerful features including a built-in MCU to locally host up to 9-way video conferences, wireless screen-sharing capabilities, integrated Wi-Fi, Bluetooth and more. The GVC3220 can be easily integrated with Grandstream’s IPVideoTalk Meetings platform to turn any meeting hosted on a GVC device into an online meeting that can be joined seamlessly by up to thousands of people from a web browser, mobile app or other GVC devices. Additional features of the GVC3220 include:

  • Supports sharp video quality of up to 4K Full-HD video output
  • Runs on Android 9.0 operating system
  • Remote video screen real-time control and sharing PC screen functions
  • Advanced camera with 8M pixel CMOS sensor, FOV wide-angle lens, 12x zoom and PTZ for easy camera view adjustments
  • Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz), supports Wi-Fi Multimedia
  • Built-in MCU can host up to 5-way 1080p HD conferences or 9-way 720P conferences
  • 1x HDMI-in, 2x HDMI-out, 1x line in/out, 1x media
  • Each GVC3220 comes with 1x GMD1208 Wireless Desktop Microphone



The GMD1208 is an extension microphone companion device that pairs with the GVC3220 to increase the overall audio coverage range. Up to two GMD1208s can be pried with each GVC3220 to provide full room audio coverage. With ultrasound pairing, long talk time, proprietary 2.4G/BLE dual mode and error-resilient long-distance transmission, the GMD1208 brings mobility and flexibility for a powerful large-room conferencing solution. Each GMD1208 unit supports 360-degree full band quality voice pickup with a radius of 5 meters for the best user experience. The multi-functional touch key on this device can trigger various functions with different operations and includes an LED indicator for status notifications.

  • Capacitive touch mute button with LED
  • 1500mA built-in Li-Ion battery
  • Micro-B port for charging, BYOD microphone and upgrading
  • Low power indicator
  • Bluetooth v2.1+EDR protocols
  • Proprietary 2.4GHz wireless technology
  • Ultrasound pairing technology
  • High quality audio coding with error tolerance
  • Built-in 8 omni-directional MEMS with 5-meter pickup range
  • 1x GMD1208 is included with each GVC3220; GMD1208 also available for separate purchase



Protocols / Standards SIP RFC3261, H.323,BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE,LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, OpenVPN®
MCU Up to 5-way video conferencing with 1080p @30fps, and 9-way with 720p @30fps conference
Camera 1/2.5“, 8 Megapixel CMOS, 4k 30fps or 1080p 60fps output
Lens 12x optical zoom,+/-30° tilt, +/-170° pan, 70.1°~7.4°(W) Field of View, 40.7°~4.2°(T) field of view
Network Interface 1× RJ45 10/100/1000Mbps
Wi-Fi Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4GHz & 5GHz), supports Wi-Fi Multimedia
Bluetooth Integrated Bluetooth 5.0 + EDR
Video Outputs 1x HDMI 2.0 up to 4K, 1x HDMI 1.4 up to 1080p
Video Input 1x HDMI 1.4a with resolution up to 1080p
MIC/Speaker Support external Bluetooth or 2.4G microphone, 1 built-in speaker.
Audio Input/Outputs 1x Line in/out ,1x Media
Remote Control Bluetooth and infrared remote control with multi-touch touchpad
Auxiliary Ports 1x USB 3.0 , 1x USB 2.0 , 1x SD, 1x Reset
Voice Codecs Support for G.711μ/a, G.722 (wide-band), iLBC, Opus , G.711, G.722.1, G.722.1c ,G729A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Video Codecs H.264 BP/MP/HP, video resolution up to 4k, frame rate up to 30 fps, bit rate up to 8Mbps,



H.265 BP/MP/HP, video resolution up to 4K, frame rate up to 30 fps, bit rate up to 8Mbps
Portrait Video Resolutions 4K from 1Mbps to 8Mbps, 1080p from 1Mbps to 4Mbps, and 720p from 512Kbps to 2Mbps
Content Video Resolutions Input: 720p, 1080p (HDMI)



Encoding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080

Output: 720p, 1080p
Dual-Stream BFCP, portrait video (up to 4K@30fps) + content video (up to 1080p@15fps)
Audio Features AEC, ANS, AGC, PLC, CNG/VAD
Video Features FEC, dynamic display layout, picture-in-picture, picture-outside-picture
Video Conferencing Service Platform SIP, H.323, Grandstream IPVideoTalk, BlueJeans and Zoom
Telephony Features Hold, mute, downloadable phone book (XML, LDAP), call waiting, call history, flexible dial plan, server redundancy & fail-over
Downloadable Apps Microsoft Teams, Skype or Skype for Business, Zoom, YouTube, API/SDK available for advanced custom application development, etc.
Applications Deployment Allow various Android operation system 9.0 compliant applications to be developed, downloaded and run in the embedded device with provisioning control
QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configura­tion file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Chinese and more
Upgrade/Provisioning Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file. Detect U disk /SD card system version upgrade automatically.
Power & Green Energy Efficiency Universal power adapter:



Input: 100~240Vac 50~60Hz

Output: 48V/1.35A(64.8W)
Package Content GVC3220 video conference system, GMD1208 wireless microphone, remote control, 4 AAA batteries, universal power supply, network cable (2 meters), HDMI cables (1x 5 meters, 2x 1.5 meters), lens cleaning cloth, bracket, quick instal­lation guide
Temperature and Humidity Operation: 0°C to 40°C



Storage: -10°C to 60°C

Humidity: 10% to 90% (Non-condensing)
Compliance FCC: Part15 Class B; Part 15 Subpart C 15.247; Part 15 Subpart E 15.407; MPE.



CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301 489-1; EN 301 489-17; EN 300 328; EN 301 893; EN 62311.

RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1.

IC: ICES-003; RSS-GEN; RSS-247; RSS-102(MPE).

HDMI/EAC/REACH/ROHS/WEEE
