AVer EVC170 Full HD Video Conferencing Endpoint (Upgradable to 6-Way MCU)

NGN2,184,876.00

Availability:

In stock

Out of stock

SKU

deluxe----1657037006

Brand

Aver

Product Description

AVer EVC170 is a video conferencing endpoint with an integrated meeting server for incredible performance in medium to large conference rooms, board rooms, and meetings rooms. Designed to make video conferencing feel as natural as possible, EVC170 comes with a 1080p Full HD video camera with full PTZ support: 12x lossless optical zoom, ±130° panning range, and -25° to +90° tilting range. AVer SmartFrame automatically frames the group, so everyone is included without any fuss.

AVer EVC170 comes with a professional video conferencing codec that is equipped with a built-in meeting server. It supports SIP, H.323, and WebRTC (with extra license) for interoperability across on-premise platforms. You can record meetings directly to a USB flash drive. AVer offers a wide range of software support to enhance the meeting experience, including EZDraw for collaborative editing using Android or iOS tablets and ScreenShare for wireless content sharing.

What’s more, with the latest firmware release, the Aver EVC170 video conferencing End Point is now upgradable to a 6 Points Multipoint Control Unit (MCU), making the EVC170 become a video conferencing server, facilitating connection of up to 5 other end-points to the Aver EVC170 system.

Web Real-Time Communication (WebRTC)

The EVC170 supports instant real-time communication over web browsers (Chrome or Firefox) with WebRTC integration. Use WebRTC to share slides or set up live customer support without an expensive third-party service (license upgrade required).

Features of Aver EVC170:

1080p Full HD video camera with full PTZ support
12x Lossless Optical Zoom (18X Total Zoom), ±130° panning range, and -25° to +90° tilting range
End-Point with Built-In Meeting Server (MCU) Capability; Expandable to 6-Point MCU**
AVer’s SmartFrame Focus Technology- Captures Everyone around the table at 1 Click
Support integrates H.323, SIP, Zoom*, Cisco Webex and WebRTC
Microphone array provides 360° audio out to 10ft
Remote Control for simplified operations

*Requires Zoom Room Connector License on Host Account

**Requires 6-Point EVC MCU License

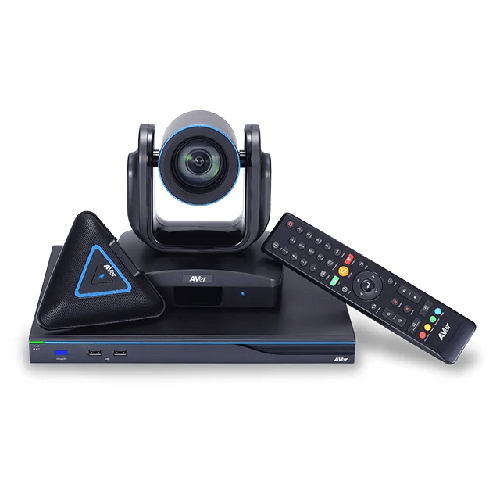

Package contents

- Main system unit (codec)
- eCam PTZ IV camera
- EVC microphone array
- IR remote control with batteries
- Power supply
- Cables
- Warranty card
- Quick guide

Communications

- H.323, SIP standards, SIP TLS
- WebRTC (License Required)
- Call-Quality bandwidth 64Kbps ~ 8Mbps
- RJ45 network LAN (10/100/1000)
- Manual max. bandwidth settings

Camera

- eCam PTZ IV camera
- 2-megapixel CMOS sensor
- 18X total zoom (12X optical + 1.5X digital)
- ±130° pan; +90°/-25° tilt
- 72° FOV (H); 43° FOV (V); 82° FOV (diagonal)

People video resolutions

- HD 1080p (1920 x 1080), up to 60fps
- HD 720p (1280 x 720)
- 480p (848 x 480)
- 4CIF (704 x 576)
- CIF (352 x 288)
- SIF (352 x 240)
- All resolutions at 30fps

Content video resolutions

HDMI-supported resolutions

- 1080p (1920 x 1080)
- 720p (1280 x 720)
- D1 (720 x 480)
- SXGA (1280 x 1024)
- XGA (1024 x 768)
- SVGA (800 x 600)
- VGA (640 x 480)

Output resolutions:

- Up to HD1080p (1920 x 1080) up to 60fps

Video standards

- H.264, H.264 HP, H.264 SVC, H.263+, H.263
- H.239 dual-video streams
- BFCP content sharing

Video features

- 3D denoise

Video inputs

- Main camera eCam PTZ IV
- HDMI/VGA for presentation

Video outputs

- HDMI x 2
- VGA

Audio standards

- G.711, G.722, G.722.1, G.728, G.722.1C, AAC-LD, G729

Audio features

- Automatic gain control (AGC)
- Advanced noise reduction (NR)
- Acoustic echo cancellation (AEC)

Audio inputs

- EVC microphone daisy chain up to 4
- HDMI
- Line-in (3.5 mm)

Audio outputs

- HDMI x 2
- Line-out (3.5 mm)

Other supported standards

- H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
- RTP, RTCP, H.350, SRTP, H.235, HTTP, HTTPs, Telnet, DHCP, DNS

User interface

- Single/dual-monitor layout styles
- User-friendly OSD
  (23 supported languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
- Display/edit site name

Network

- 10/100/1000Mbps
- NAT/firewall traversal (H.460)
- High Efficiency Lost Packet Recovery (HELPeR™)
- API support via Telnet
- Packet Loss Recovery (PLR)
- Wake-on-LAN (WOL) support
- IPv4 and IPv6 support
- Network test
- Quality of service (QoS)
- VLAN (802.1Q / 802.1P)
- EAP 802.1x

Security

- AES (Advanced Encryption Standard) function (128-bit) and H.235
- Password protection for system settings
- Password protection for remote system management

Web management tool

- Remote management
- Live monitoring
- Firmware update
- Phonebook download/upload/edit
- Restore system settings
- Export call history
- HTTP and HTTPs

Value-added features

- Meeting recording

- - In-meeting and offline recording
  - Save directly to USB flash drive
  - Supports screen re-layout during playback
  - Playback and file conversion via VCPlayer software (.MOV and .MP4 format)

- EZMeetup / EZMeetup Plus software/App

- - 30-day for free trial
  - Connect with H.264 and H.264 HP video codecs
  - Receive resolution up to full HD 1080p at 30fps
  - Transmit resolution up to full HD 1080p at 30fps
  - Support content sharing, capturing and recording

- EZDraw App

- - Import .JPG, .PNG, .GIF and .BMP files
  - Export .PNG files
  - Connect up to 10 devices

- ScreenShare software (Wirelessly share content)
- VCLink software (control and sharing in smartphone)
- Dual-monitor support output (video and content sharing)
- Speed dialing via hot keys (10 sets)
- Camera presets (100 positions)
- Firmware updates via USB flash drive
- Screensaver and auto power-off mode
- Network Time Protocol (NTP)
- SnapShot
- Supports SIP voice calls
- iSCSI storage device settings
- Built-in meeting server
- Supports AVer Register Server (ARS)
- Far-end Camera Control
- Meeting ID method

- Multipoint License

- - Supports 2, 4 point multi-point licenses for up to a maximum of of 6 points.
  - Requires Aver EVC350 2 or 4-port Upgrade License
  - Requires Firmware version 00.30.02.06

Power supply

- AC 100V ~240V, 50/60 Hz
- Consumption: EIAJ 12V, 5A

Environmental data

- Operation temperature: 0 ~ 40°C
- Operation humidity: 20 ~ 80%
- Storage temperature: -20 ~ 60°C
- Storage humidity: 20 ~ 80%

Physical characteristics

- Package dimensions: 376 x 300 x 243 mm
- Package weight: 6.99kg (15.41lbs)
- Main system (codec): 320 x 262.7 x 37.2 mm
- eCam PTZ IV: 180 x 144 x 184 mm
- EVC microphone array: 131.9 x 118.6 x 25.5 mm
