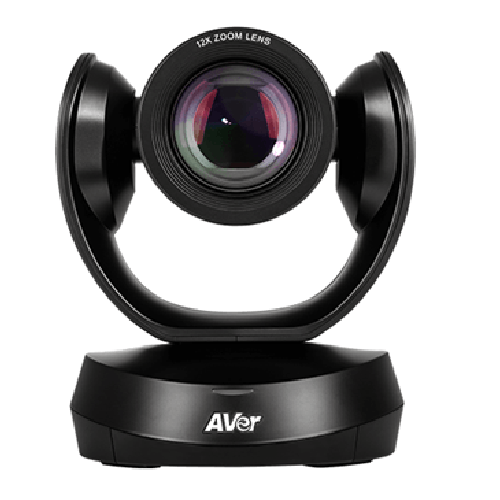

AVer CAM520 Pro Camera

• Camera

• • Sony super-low-light 2M pixel sensor, clear and natural imaging in low-light conditions
  • Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
  • SmartFrame for automatic FOV adjustment to fit all participants
  • True WDR up to 120db: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Zoom: 18X total zoom (12X optical zoom)
  • Wide field of view (DFOV): 82°
  • Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
  • Lens F#: 1.8 (wide) ~ 2.8 (tele)
  • Mirror, flip, AE, white balance: auto/manual override via PTZApp
  • Minimum focus distance: 1.5 m
  • Standard tripod screw holes and Kensington slot

• Motorized Pan & Tilt Movement

• • Pan: ±170°
  • Tilt: +90° (up) -30° (down)
  • 10 camera presets (via remote control)
  • Fast and quiet pan/tilt movement

• Video Format

• • YUV, YUY2, MJPEG, NV12
  • Network video compression format: H.264
  • Network protocol: RTSP, RTMP

• Connectivity

• • 12V/2A power adaptor
  • Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy chain)
  • USB 3.1 type-B connector
  • IP (RJ45)

• USB

• • 3.1 Gen1 Type B, backward compatible with USB 2.0
  • UVC (USB video class) 1.1

• Control

• • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC/UAC plug and play
  • WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
  • PTZApp

• Mount

• • Camera wall-mount bracket included
  • Optional foldable TV mount

• System Requirements

• • Windows^® 7/10
  • Windows^® 10 Enterprise (IoT) LTSC (version 1809)
  • Mac OS X 10.7 or higher
  • Google Chromebook™ version 29.0.1547.70
  • Android 5 or higher

• Hardware Specs*

• • 3.2 GHz Intel^® Core™ i5-4460 processor
  • 4 GB RAM or more
  • USB 3.1 port , backward compatible with USB2.0 port

• Web page browser requirement

• • Chrome: version 76.x or above
  • Firefox: version 69 or above
  • IE: Not support

• Power Supply

• • AC 100V ~ 240V, 50/60 Hz
  • Consumption: 12V, 2A

• Free Applications for Meeting Collaboration (Windows^®and MAC)

EZManager Camera Central Management software

• • Remotely manage group FW/SW updates, camera control, and settings

PTZApp

• • Compatible with Skype for business far-end control
  • Upgrade firmware automatically or manually
  • Control camera
  • Set parameters and adjust camera image
  • Diagnose operating status
  • View live video

EZLive

• • Real-time streaming / annotating / image capturing /video recording

• Environmental Data

• • Operation temperature: 0°C ~ 40°C
  • Operation humidity: 20% ~ 80%
  • Storage temperature: -20°C ~ 60°C
  • Storage humidity: 20% ~ 80%

• Dimensions

• • Package dimensions: 256 x 256 x 274 mm
  • Package weight: 3.335 kg/7.35 lbs
  • Camera: 182 x 142.7 x 153 mm/1.47 kg
  • Remote control: 200 x 50 x 21 mm/0.09 kg

• Package Contents

• • CAM520 Pro unit
  • Remote control
  • USB 3.1 type-B to type-A cable (10 ft/3 m)
  • Power adapter (10 ft/3 m)
  • Quick-start guide
  • Warranty card
  • Wall-mount bracket
  • ¼” tripod screw

• Optional Accessories

• • Mini DIN9 to RS232 adapter
  • Foldable TV mount

• Compatible Applications

• • Zoom, Microsoft^® Teams, Skype for Business, Skype, Google Hangouts Meet, Intel^® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting^®, TrueConf, Adobe^® Connect™, Cisco Webex^®, Fuze, GoToMeeting™, Microsoft^® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
